The BNR ST-770 turbocharger upgrade is intended for cars with auxiliary fuel systems and built bottom end! This turbo is good for up to around 580-600 WHP (more power is possible with a more efficient cylinder head). This upgrade will spool similarly to the ST71 but nets around 100 more peak HP when maxed out. The 770 has a German made ceramic dual ball bearing system that is reliable under extreme conditions! We also include a .038" restricted banjo bolt to eliminate oil flooding issues that journal bearings sometimes have when the engine isn't ventilated properly.
If you currently have a BNR turbo, we can sell you just the turbocharger for a discounted rate. Please contact us by phone if you request this option!
Fitment of the BNR-770 may need minor clearance on the axle mount and will need a intake coupler to adapt to your intake system. Unit pictured has an inlet extension which will be removed when we start shipping out units!
This is what you get when you purchase the ST-770!

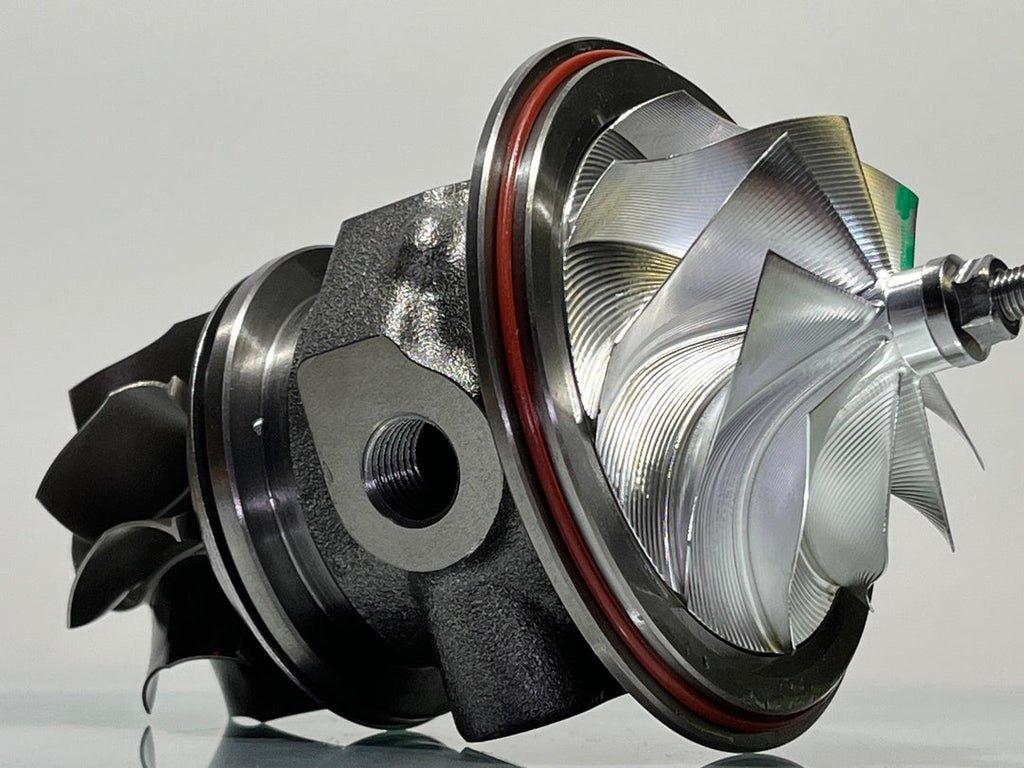

- BNR g30-770 Ball bearing Center Housing Rotating Assembly (VSR balanced)
- BNR T04B 3.5" inlet with T51R mod/2" outlet (.70 a/r) BNR .82 a/r internal wastegate turbine housing
- 32mm Internal wastegate with heavy duty, stainless swing valve assembly
- Extreme internal wastegate actuator (18 psi minimum)
- BNR Cast iron turbine inlet adapter
- BNR Cast iron Turbine outlet adapter
- Multi-layer turbine inlet and outlet gaskets (for the BNR housing)

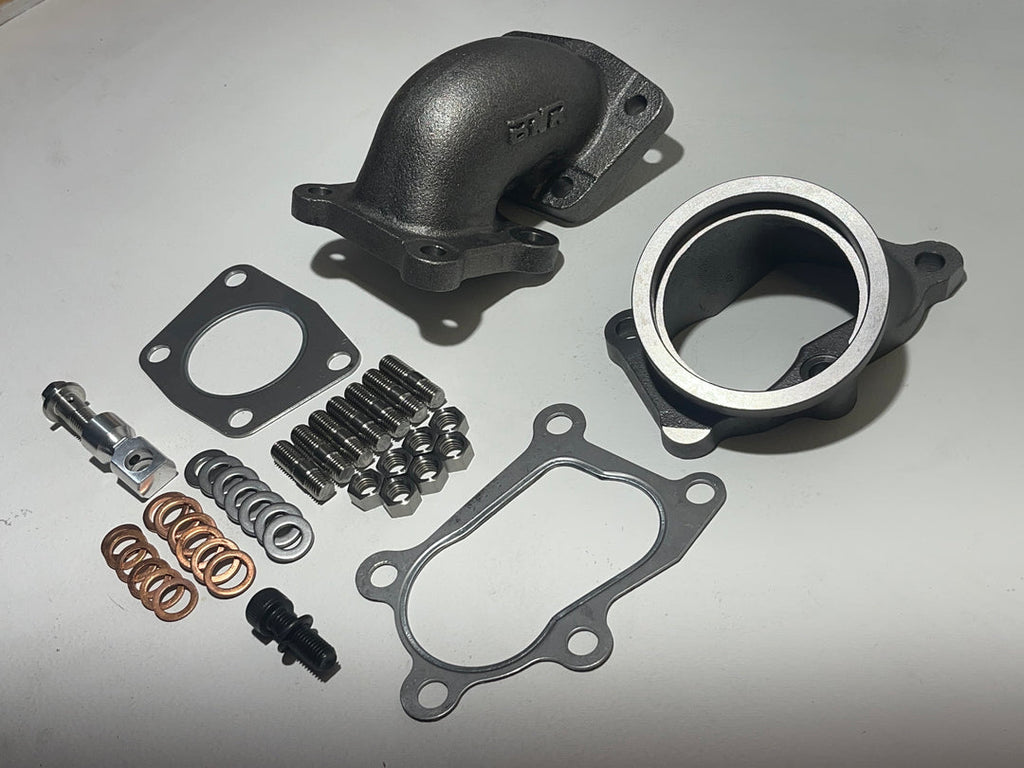

Hardware included:
- 7 M10 1.5 stainless studs
- 7 M10 1.5 Stainless nuts
- 7 M10 2mm Stainless washers
- 1 M10 1.5 Allen head bolt (for turbine outlet adapter)
- 1 Aluminum oil inlet adapter
- 1 M12 1.5 Stainless Banjo bolt (oil inlet to adapter)
- 6 M12 Copper washers (oil inlet)
- 6 M14 Copper washers (water inlet/outlet)
- Upgraded, stainless oil outlet tube with O rings (Comes standard on units purchased after 2/15/2024)
