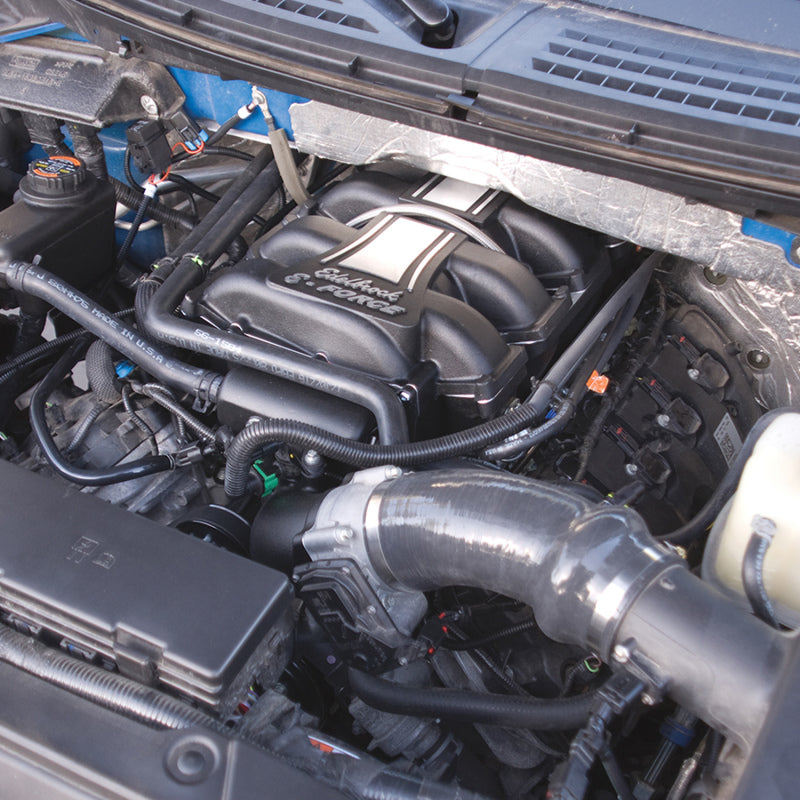

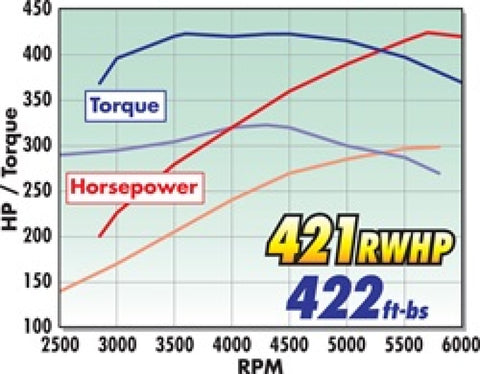

The Edelbrock supercharger Stage 1 System part #1584 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Edelbrock Carb E.O. D-215-85; Supercharger; Stage 1-Street Kit; 2011-2014; Ford; F-150; 5.
Nitrous Taper Face Jet?.087.
Ford:Coyote 4V:302 (5.0L)
Product Features:
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: true
Prop 65: Y
Epa: N/A
Fits According to Mfg but not guarunteed.
2011 Ford F-150 FX2
2011 Ford F-150 FX4
2011 Ford F-150 King Ranch
2011 Ford F-150 Lariat
2011 Ford F-150 Platinum
2011 Ford F-150 STX
2011 Ford F-150 XL
2011 Ford F-150 XLT
2012 Ford F-150 FX2
2012 Ford F-150 FX4
2012 Ford F-150 King Ranch
2012 Ford F-150 Lariat
2012 Ford F-150 Platinum
2012 Ford F-150 STX
2012 Ford F-150 XL
2012 Ford F-150 XLT
2013 Ford F-150 FX2
2013 Ford F-150 FX4
2013 Ford F-150 King Ranch
2013 Ford F-150 Lariat
2013 Ford F-150 Platinum
2013 Ford F-150 STX
2013 Ford F-150 XL
2013 Ford F-150 XLT
2014 Ford F-150 FX2
2014 Ford F-150 FX4
2014 Ford F-150 King Ranch
2014 Ford F-150 Lariat
2014 Ford F-150 Platinum
2014 Ford F-150 STX
2014 Ford F-150 XL
2014 Ford F-150 XLT
