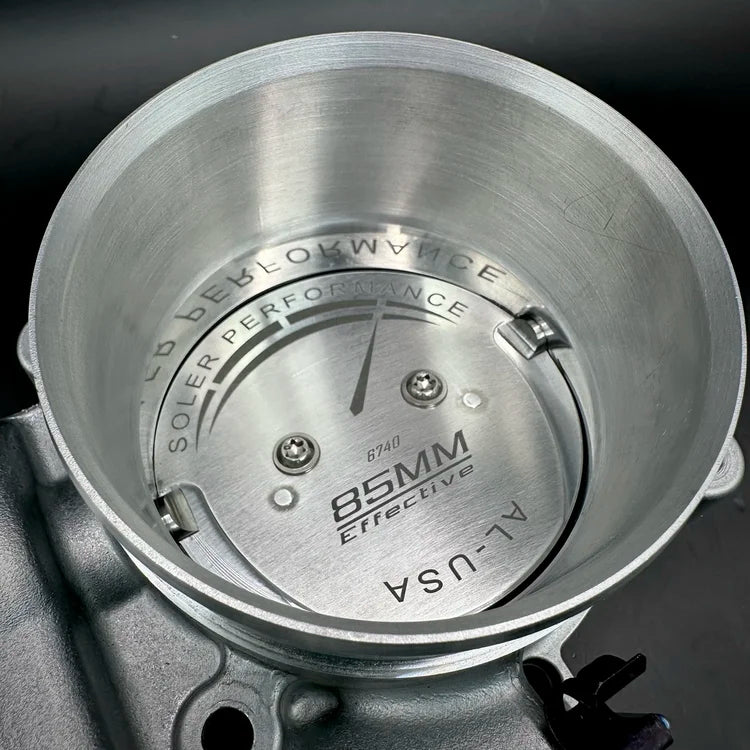

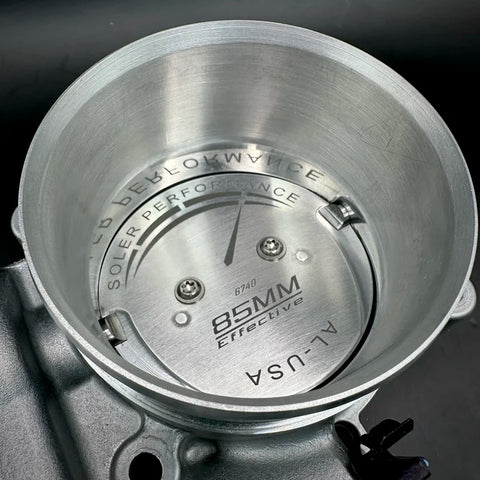

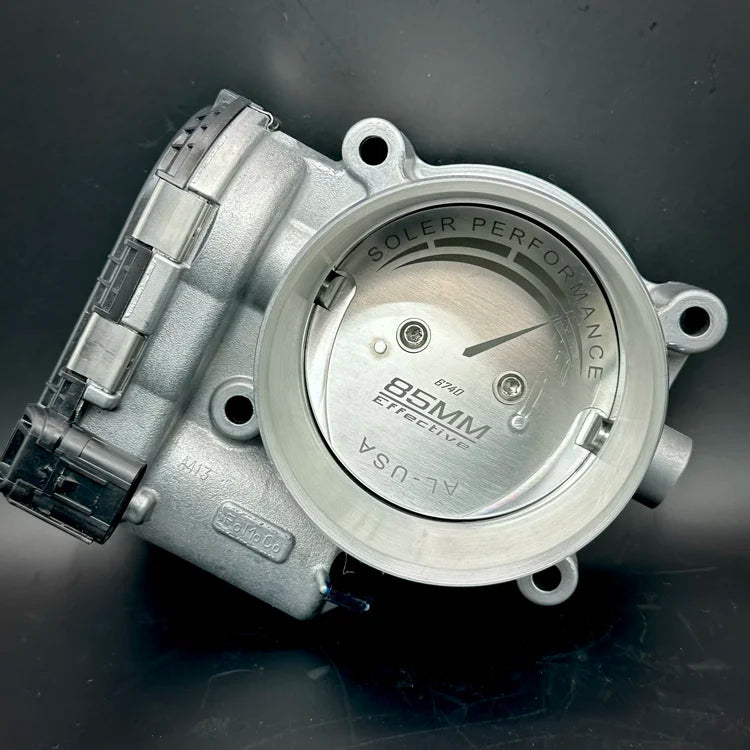

Premium Modified, Ported, and Calibrated Throttle Body.
Enhanced Performance Replacement for P/N: FR3Z9E926A, S20175.
Application:
5.0L V8 & 6.2L V8 Models (2015–2017)
FEATURES:

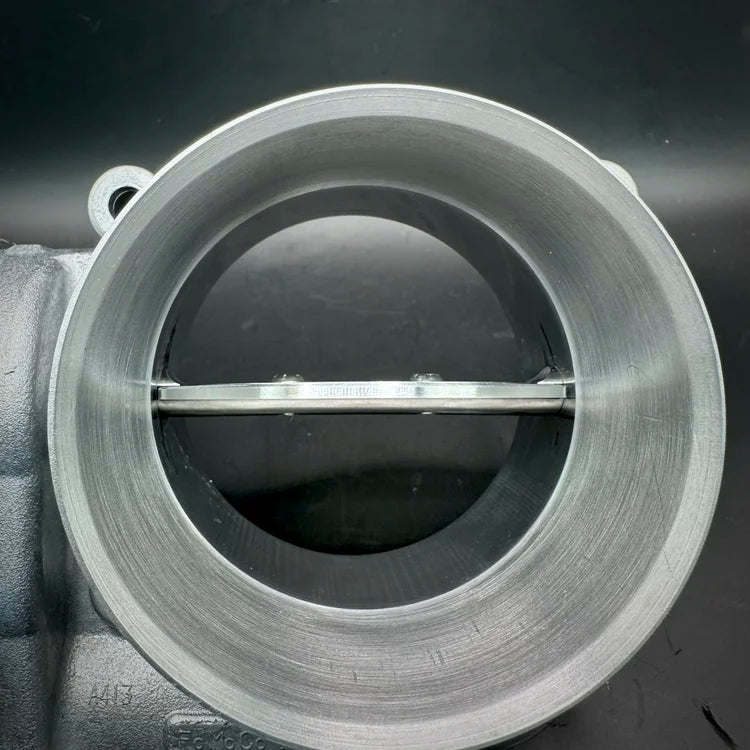

- Porting Taper and Upstream Bore with Velocity Stack (Lip & Bore Reduction)
- Sharp Blade Leading and Trailing Edges
- 16 Ra Microinch, Diamond Polished Surface Finish (Lower Skin Friction)

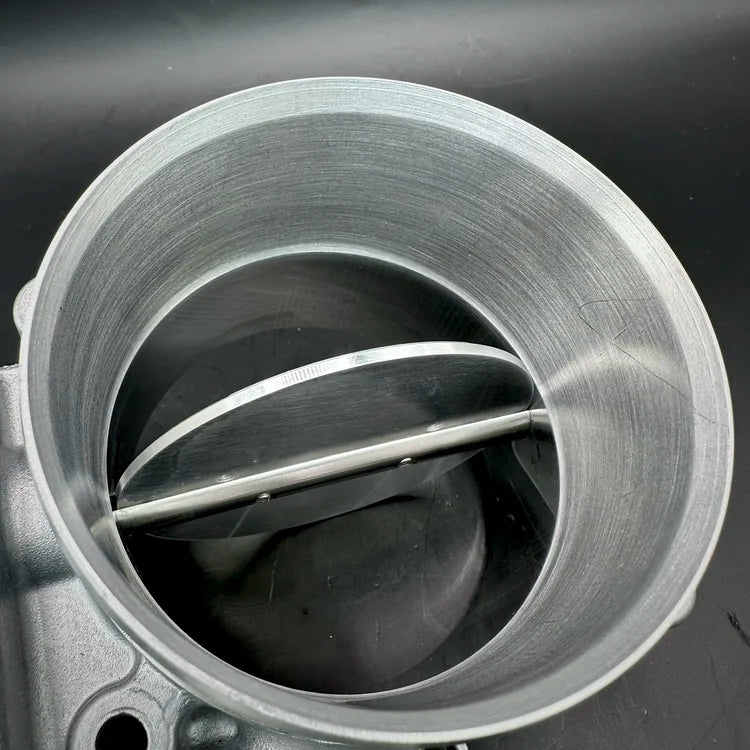

- Shaftless high-pressure side of the blade for Larger WOT Flow Area (85 mm Effective Bore)
- Self-Cleaning Throat/Flow Gap
- Dome and Thread-locked Screws
- Made from Brand New OEM Parts (Bosch)
BENEFITS:
- Lower weight to power ratio at part throttle, for a more nimble/spirited driving experience
- Linearization and smoothing of the curve for a more predictable response and crisper shifts
- Immediate response right off idling while keeping idling function undisturbed
- Does not require tuning. Warranty safe.
- More air/power at every single throttle position after idle. Crucial for starting or expanding power gain modifications
- Easy Installation
PERFORMANCE:
- Wide-open throttle flow: 1030 +/- 20 SCFM @ 20.4” of water vacuum [13.5% increase over OEM]
- For use in applications up to 600 engine hp.
